| The left hand

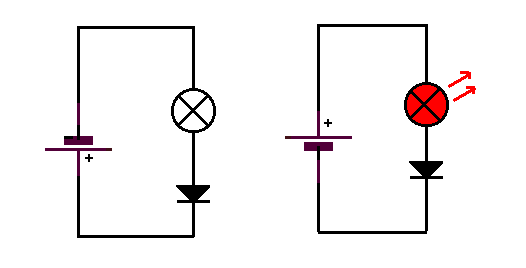

diagram shows reverse bias, with positive on the cathode and negative on
the anode (via the lamp). No current flows.
The other diagram shows forward bias, with positive on the anode and negative on the cathode, and current flowing from cathode to anode. |
