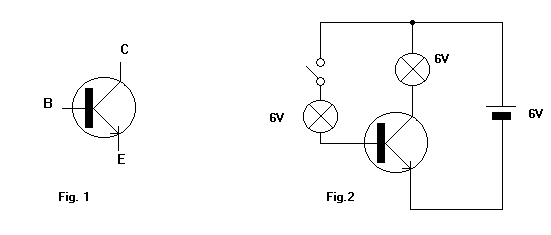

Figure 1. With
the meter set to measure ohms, clip one meter lead to the base connection
of the transistor.
Dab the other lead first onto the collector lead and then onto the emitter lead. The readings should both be the same, either both high resistance or both low resistance. Now reverse the
leads and repeat the procedure.
Now measure the
resistance between emitter and collector.
If you dont know
the transistor connections consult a data book.
Note that for
this to work the internal battery of the meter must supply a voltage high
enough to overcome the forward resistances of the transistors.
Note that NPN transistors have low resistances where PNP have high, and vice versa. Figure 2. shows
a simple power transistor tester. With the switch open both lamps are off.
|
